MCC-BC400 burner sequencer

Name: MCC-BC400 burner sequencer
Brand: LAMTEC

Configurable burner sequencer for gas-fired, oil-fired and dual-fuel burners

Burner Control Systems

LAMTEC · BC410 · BC420 · BC430

SIL3 · CE · UL
Gas · Oil · Dual fuel
Modbus TCP

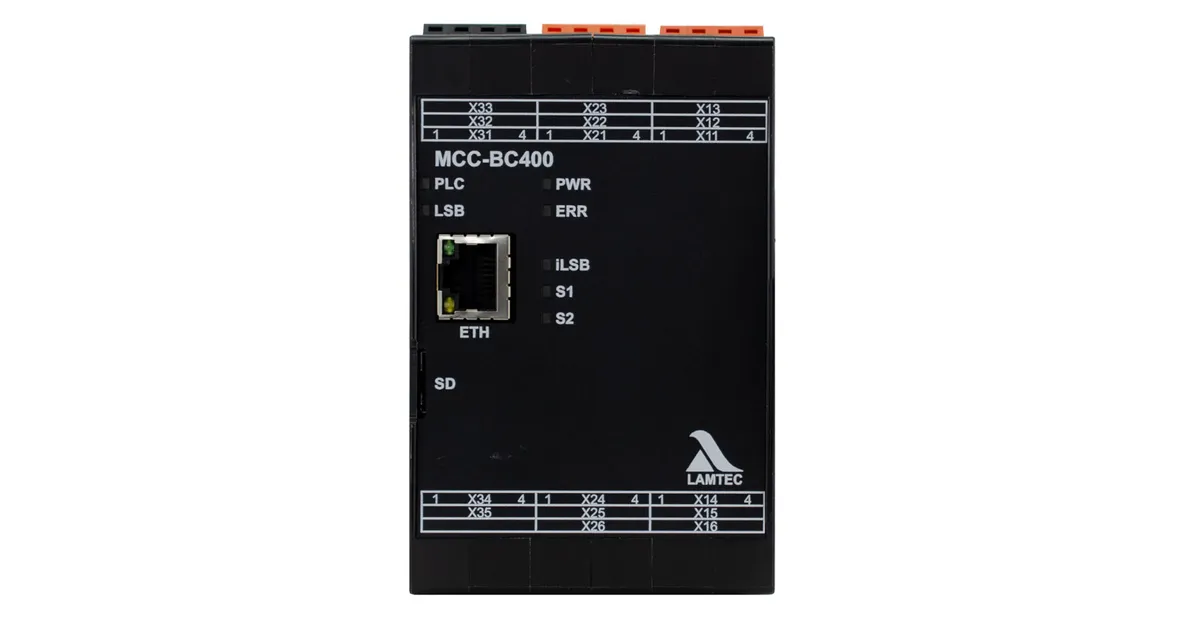

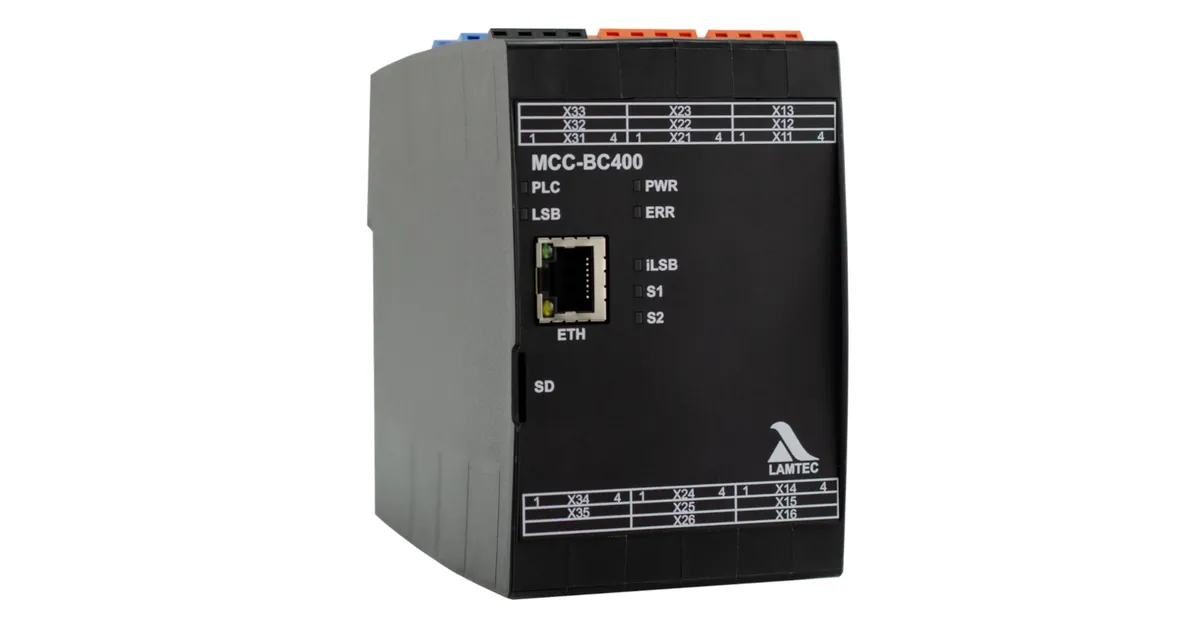

MCC-BC400 is an MCC module from the CMS system, preconfigured to work solely as a burner sequencer. It controls and supervises gas, oil and dual-fuel burners of any output in both intermittent and continuous operation. Thanks to its ready-made configuration it can be installed and put into service straight away, and it can be adapted to customer-specific needs when required.

Three fuel-specific types are offered: BC410 for gas, BC420 for oil and BC430 for dual fuel. Further configurations allow it to take the place of various burner sequencers already in use; for example, BC415 replaces the Satronic TMG740-3 and BC425 the Satronic TMO720-4. The integrated Modbus TCP interface simplifies signal exchange and reduces both wiring and control cabinet space.

Request a quote for this product Technical data sheet

Benefits

MCC-BC400 burner sequencer

Integrated flame monitoring: ionisation electrode, FFS07/FFS08 optical sensor or a digital input for F200K/F300K
Built-in valve leakage test
Start with or without pre-purge; sequences such as burner start-up are set by parameters
Standby operation and a cooling function
Fault memory holding the 10 most recent faults for diagnosis
Integrated CODESYS PLC and GUI6xx panel for application-specific functions
Language-neutral UI400 panel with symbols; settings can be changed on site with the UI400 or CMS Remote Software
SIL3, CE and UL approvals, identical to those of the CMS system

BC410 · BC420 · BC430

Key specifications

Specification	MCC-BC400
Fuels	Gas (BC410) · Oil (BC420) · Dual fuel (BC430)
Operating mode	Intermittent · Continuous
Flame detection	Ionisation · FFS07 / FFS08 · digital input (F200K, F300K)
Safety integrity level	SIL3
Supply voltage	24 V DC ±20 %, SELV
Power consumption	≤ 10 W
Interfaces	Modbus TCP · LSB · PROFIBUS DP (668R1400, optional) · PROFINET (EBM412, optional)
Degree of protection	IP20
Ambient temperature	-30 … +70 °C
Weight	0.505 kg

Full technical data: data sheet(opens in a new tab)

Approvals and standards

CE declaration of conformity (2014/35/EU, 2014/30/EU, 2014/68/EU, (EU) 2016/426, 2011/65/EU)
EU type examination certificate — 2014/68/EU, Module B (pressure equipment)
EU type examination certificate — (EU) 2016/426 (gas appliances)
SIL3 — DIN EN 61508
DIN EN 298
DIN EN 1643
DIN EN 12067-2
DIN EN 13611
ISO 23552-1
DIN EN 50156-1
DIN EN 50156-2
UL 60730-2-5 (US)
UL 60730-1 (US)
CSA C22.2 No. 60730-2-5 (CA)
CSA E60730-1 (CA)
Eurasian conformity (EAC) — TR CU 016/2011

Accessories

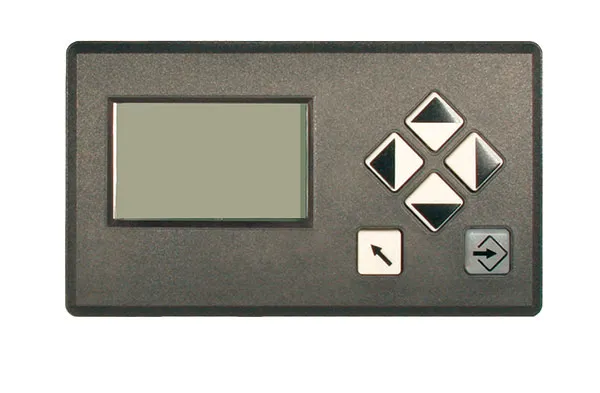

UI400 user interface (required): graphic display panel connected over LSB, with 2.5 m cable
Additional cover that raises the UI300 and UI400 panels to IP65
GUI607 colour touch screen: 7-inch, 800 × 400 pixels, IP65 at the front
GUI610 colour touch screen: 10.1-inch, 1280 × 800 pixels, IP65 at the front
GUI615 colour touch screen: 15.6-inch, 1366 × 768 pixels, IP65 at the front
Modbus TCP / PROFIBUS DP gateway for a PROFIBUS DP connection
EBM412 fieldbus module for a PROFINET IO connection
PSU2415 … PSU24150 power supply units: 100…240 V AC in, 24 V DC out, 15–150 W
CMS PC software for changing settings, backup and commissioning (basic, commissioning and expert versions)
